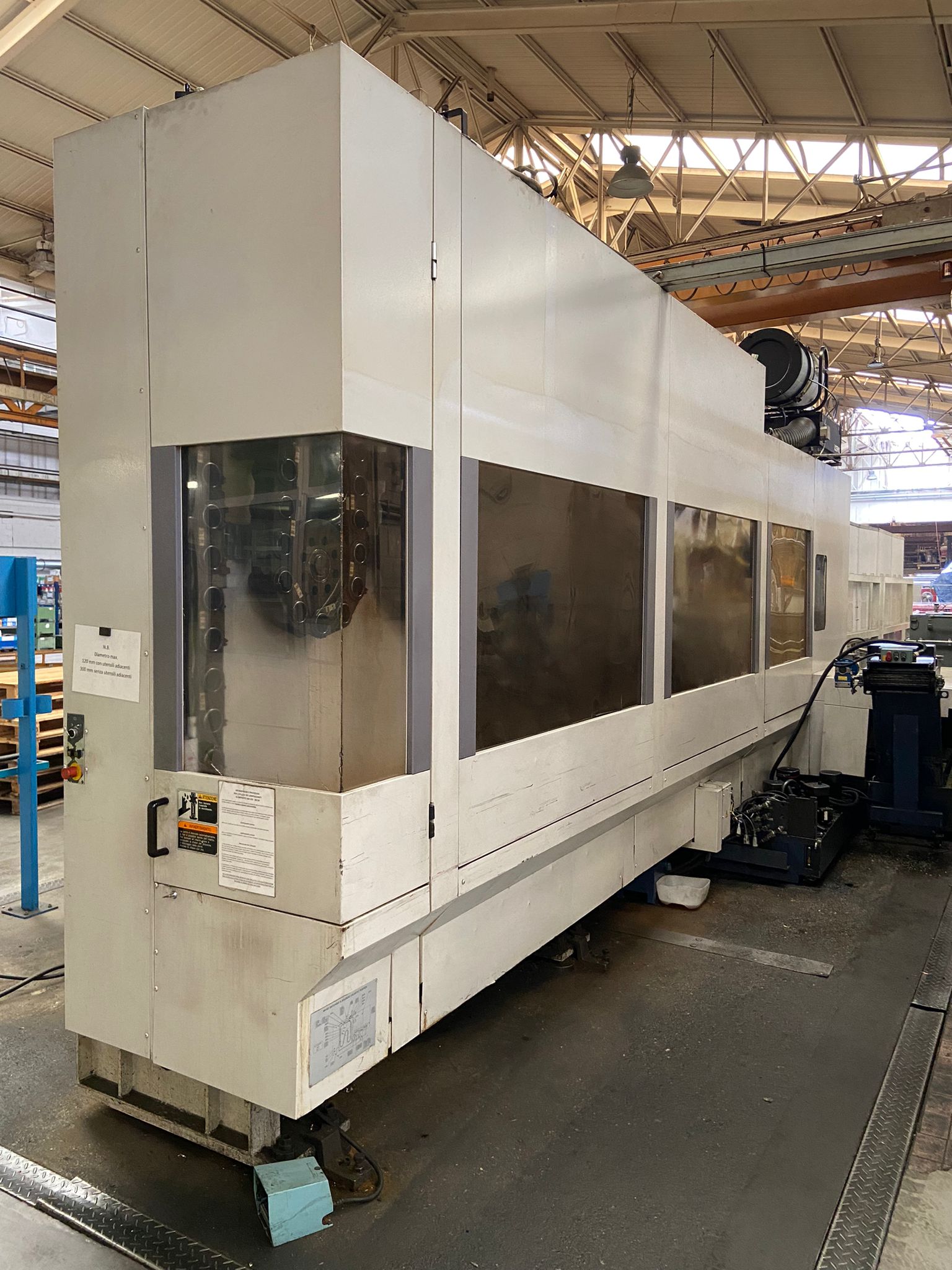

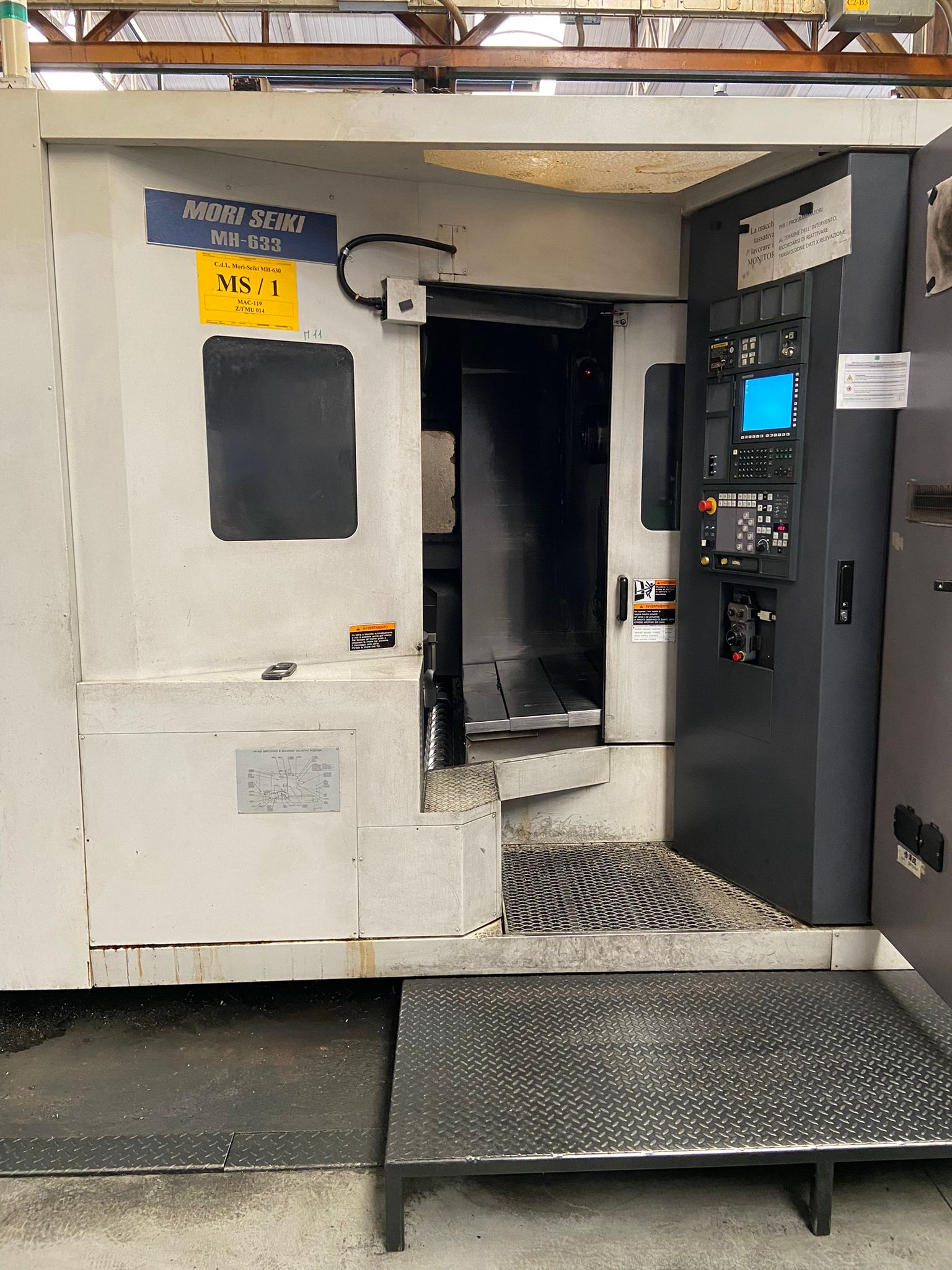

| MANUFACTURER |
MORI SEIKI |
| MODEL |
MH-633 |
| CATEGORY |
Horizontal machining center |
| YEAR |
2000 |
| CNC CONTROL |
MORI SEIKI MSX-502 III |
| MACHINE WEIGHT (kg) |
24.000 |
| DIMENSIONS (width. x lenght. x height.) (mm) |
3.390×5.320×3.121 (w/o APC) |
| NUMBER OF AXIS |
3 |
| CE DECLARATION |
YES |
|
|

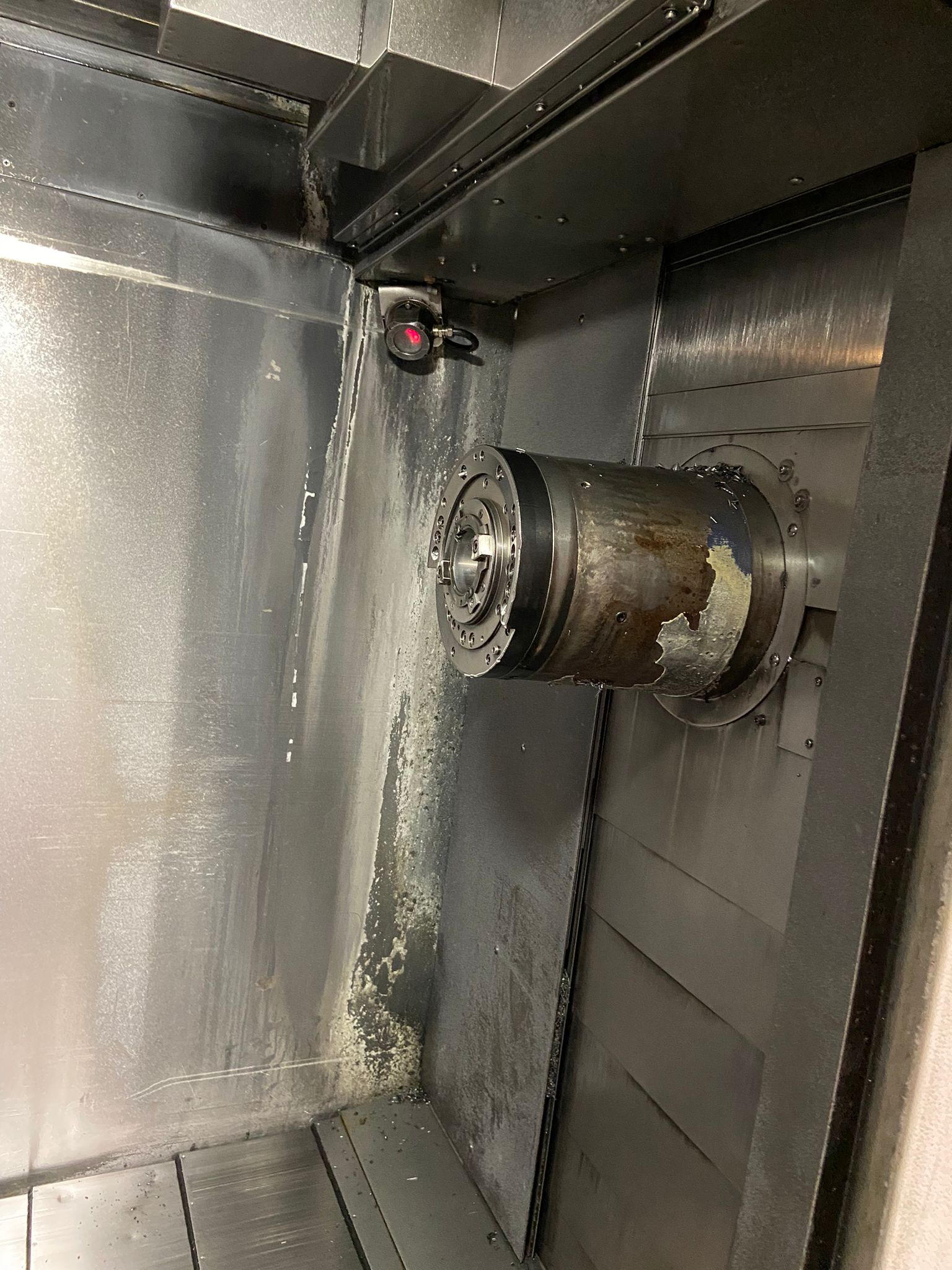

| SPINDLE |
|
| Cone dimension |
BT-50 |
| Max spindle speed (rpm) |
6.000 |
| Max spindle motor power (cont./30 minuti) (kW) |
22 / 25 |
|
|
| CAPACITIES |
|
| X axis (mm) |
1000 |
| Y axis (mm) |
850 |
| Z axis (mm) |
920 |
| Distance spindle center – pallet surface (mm) |
50 – 900 |
| Distance spindle nose – pallet center (mm) |
150 – 1070 |
| Max piece size (diam. x height) (mm) |
Ø  x |
|
|

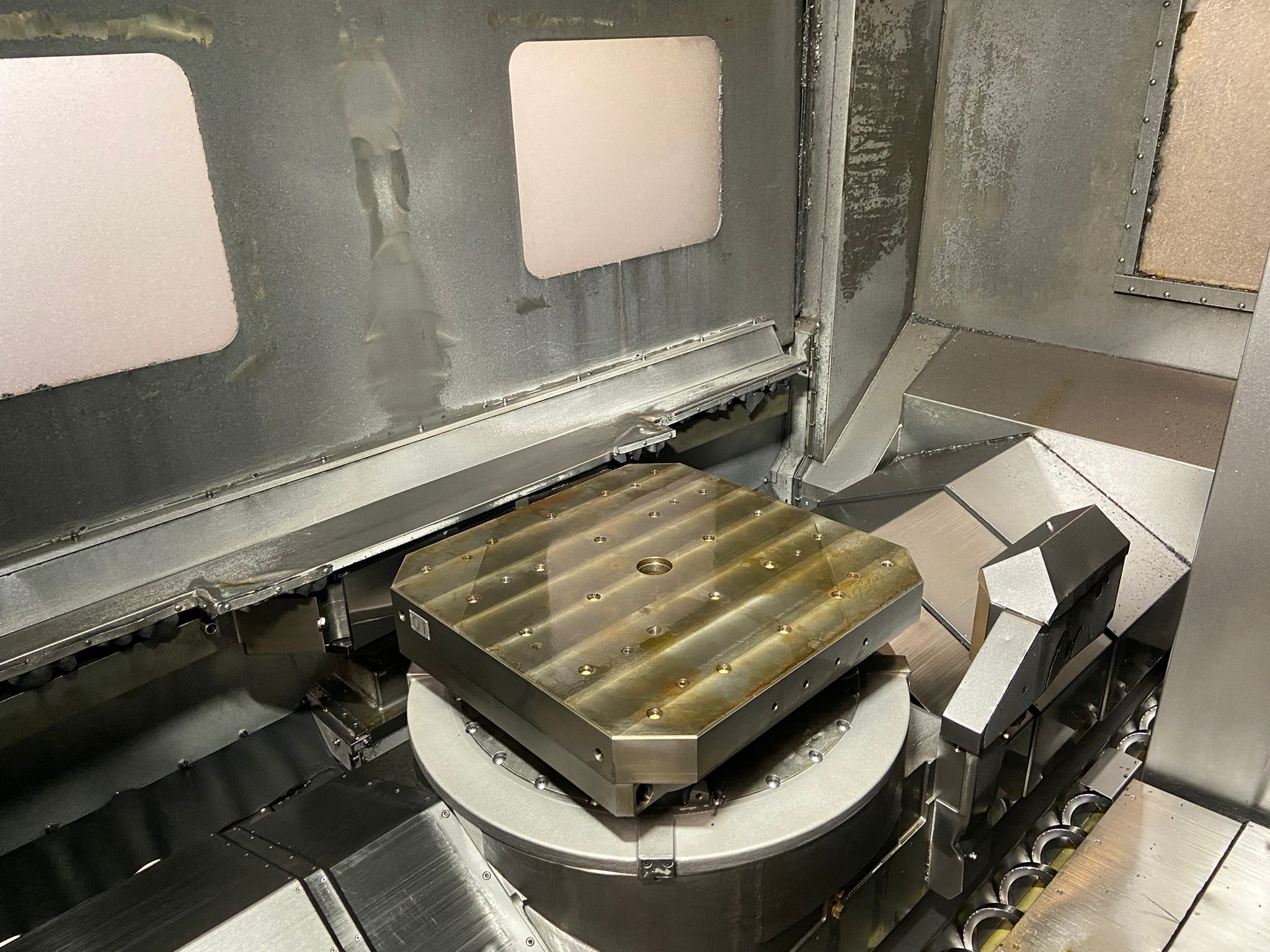

| TABLE |
|
| Dimension (mm) |
630 x 630 |
| Number of station |
2 stations with 1 pallet each. |
| Load capacity (kg) |
1.500 |
| Rotation |
indexed 360 position |
|
|

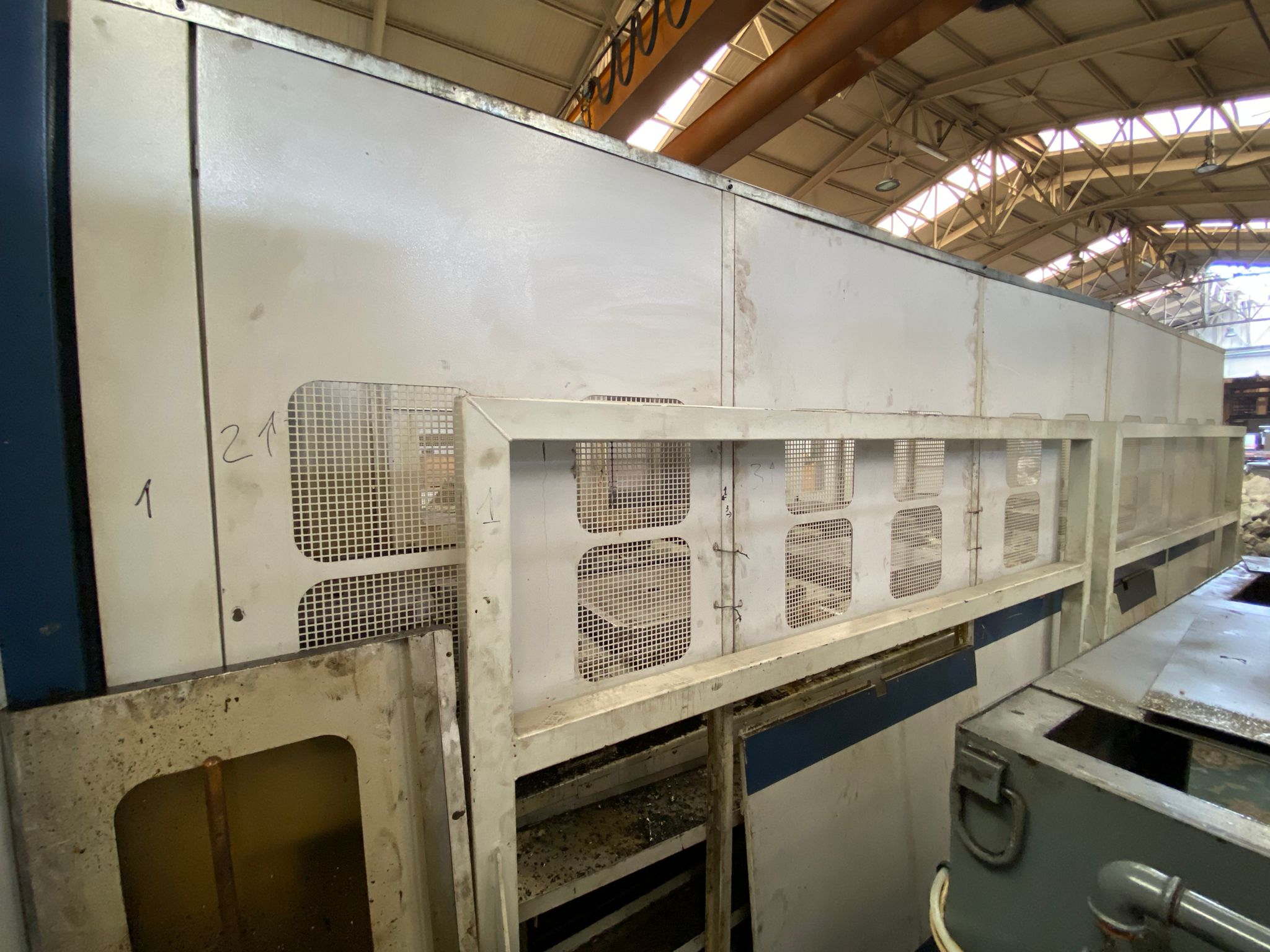

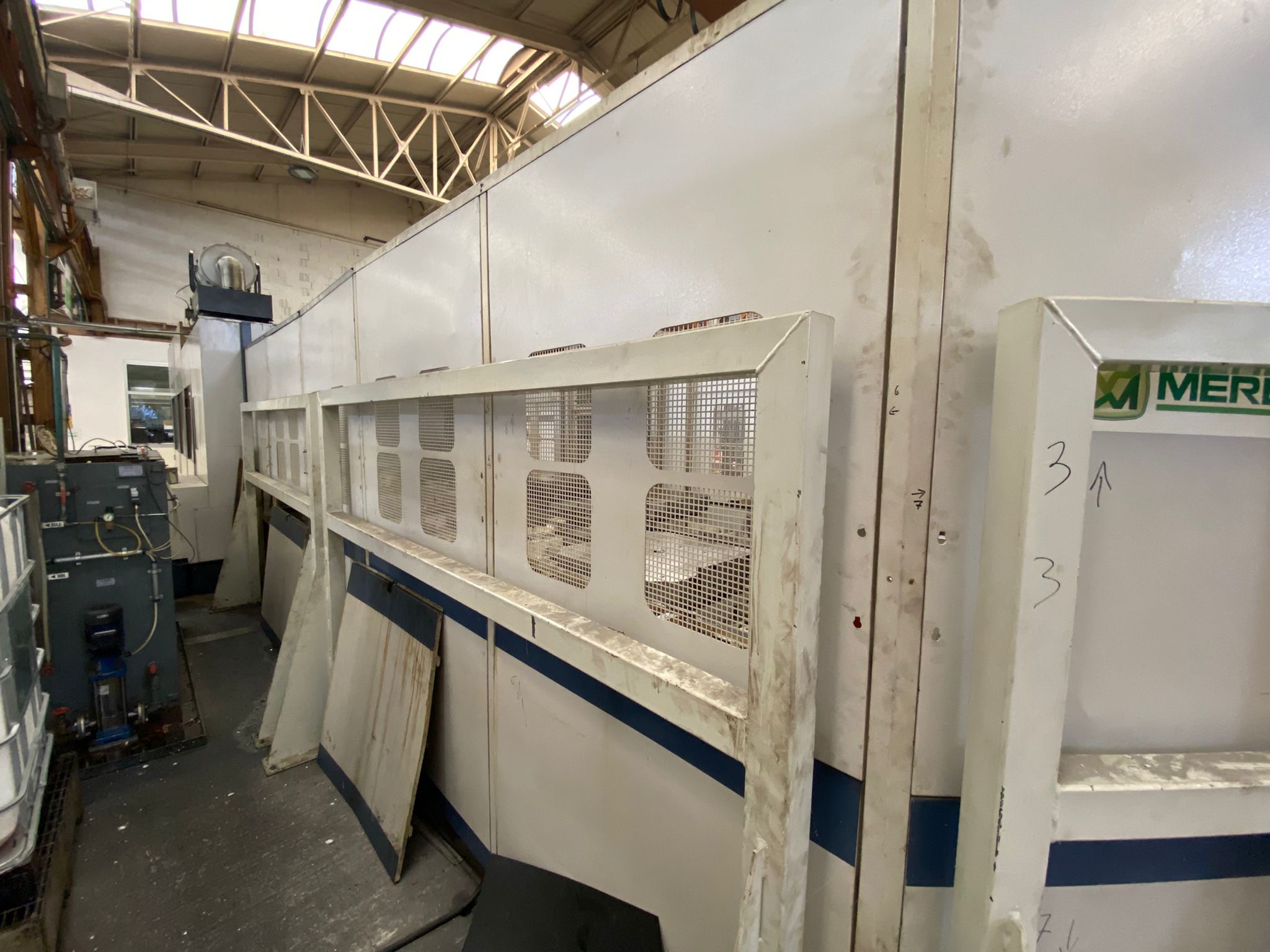

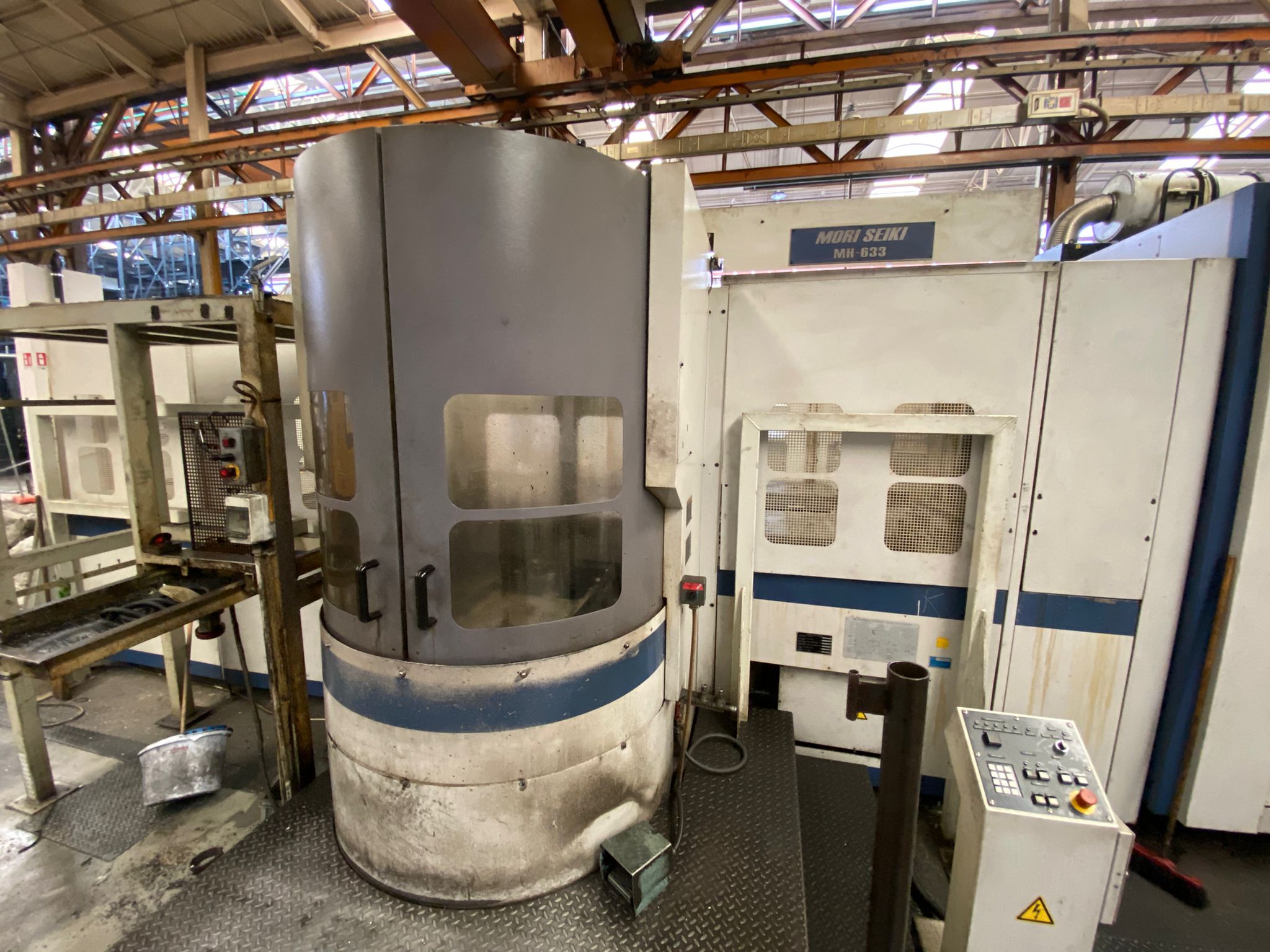

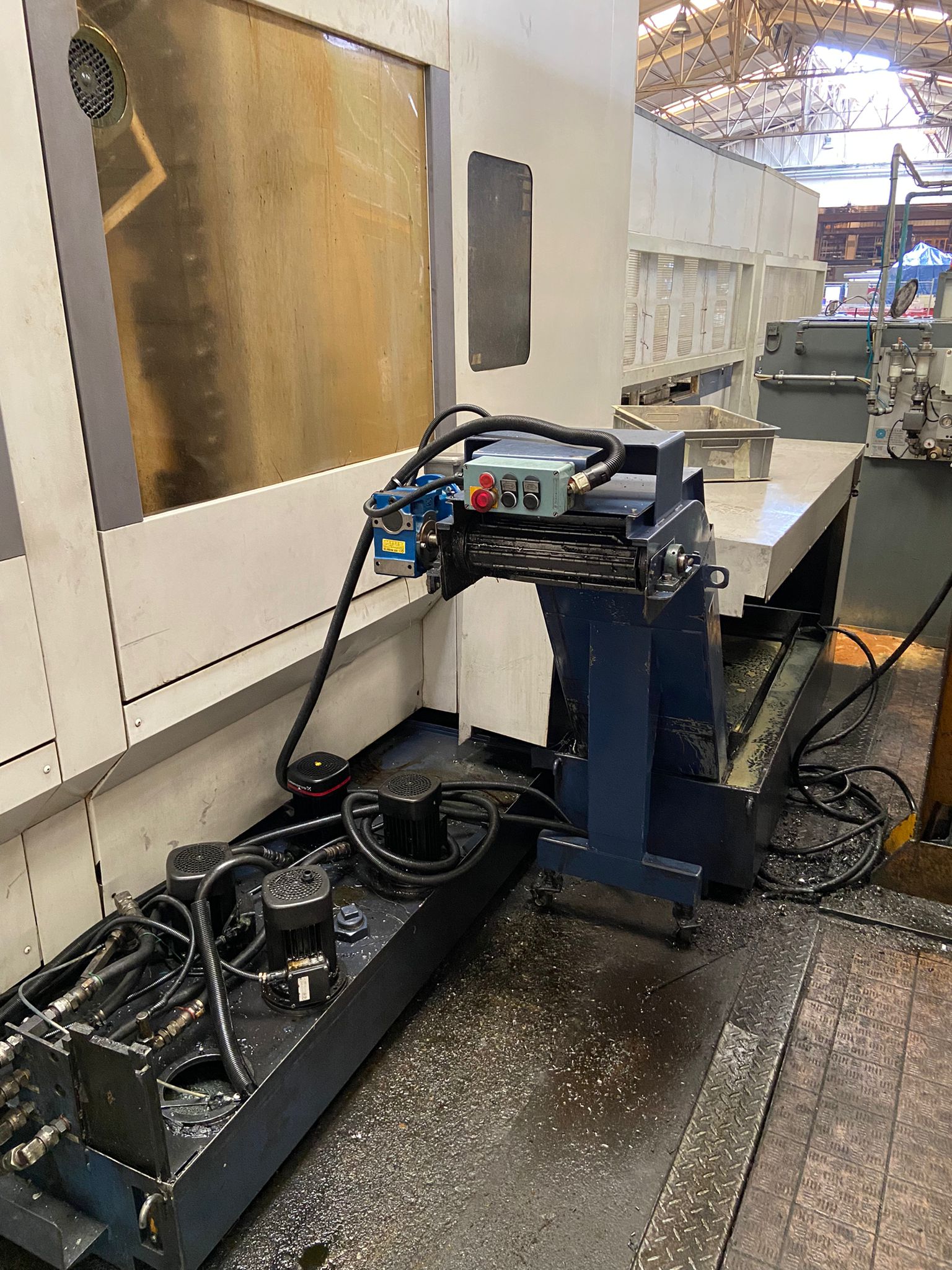

| MULTIPALLET (APC) |
|
| Number of station |
11 |
| Number of loading & unload. Position |
1 |
| Pallet changer |
2 positions |
| Rotation max encumbrance (mm) |
 Ø 1100 x 1100 |
|
|
| FEEDRATES |
|
| Rapids X/Y/Z axis (mm/min) |
20.000 |
| Working feeds X/Y/Z axis (mm/min) |
1 – 5.000 |
| Motors power (kW) |
X: 3,8Â | Y: 4,8Â |Â Z: 4,8 |
|
|

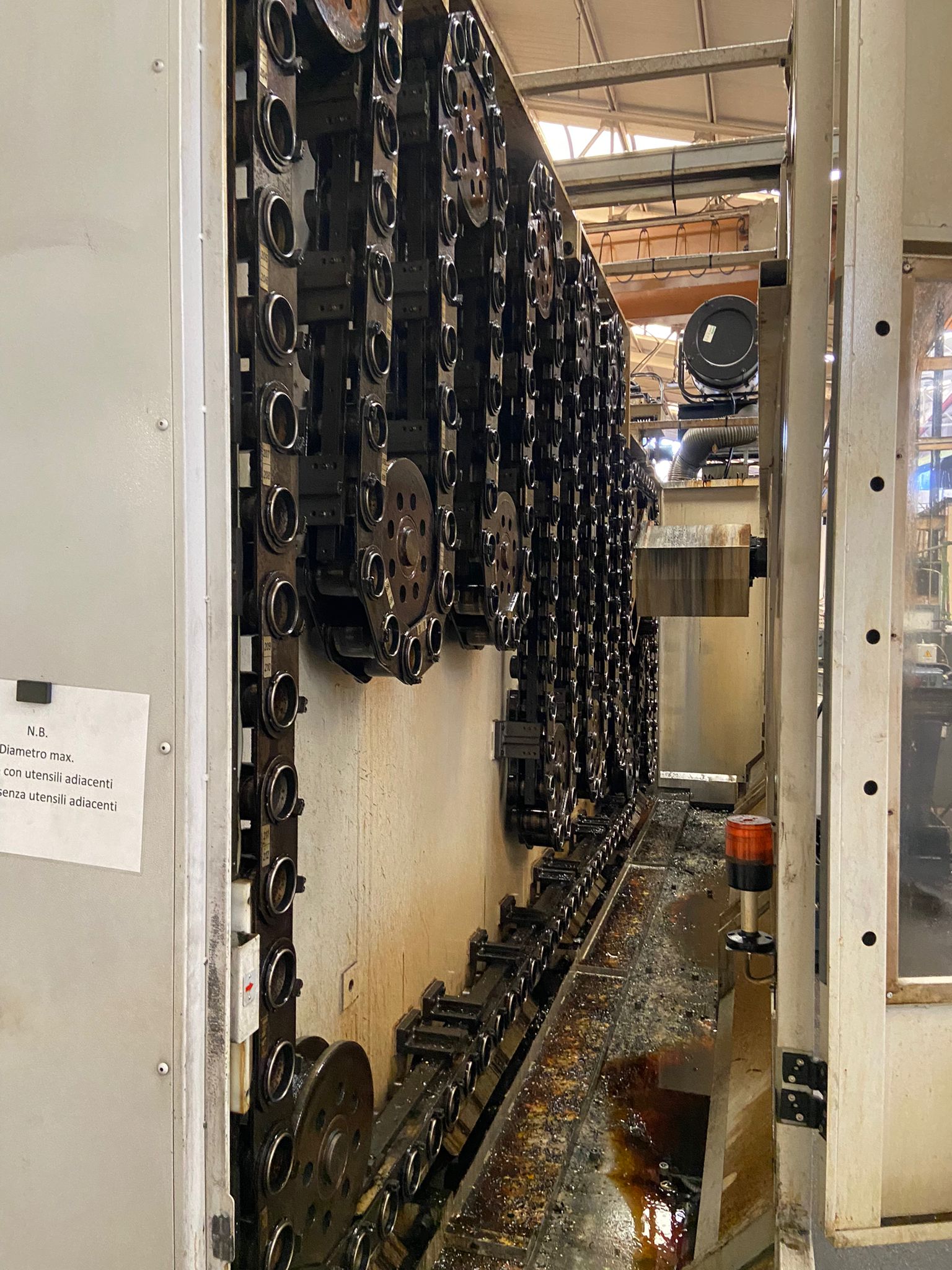

| TOOL CHANGER |
|
| Tool cone |
BT-50 |
| Pull stud |
Type Mori Seiki 90° |
| Tool storage capacity |
240 stations |
| Max tool diameter (with/without full adjacent stations) (mm) |
Ø120 / Ø300 |
| Max tool lenght (mm) |
500 |
| Max tool weight (kg) |
30 |
|
|
| ACCESSORIES |
|
| Tank and chip conveyor |
| High pressure pump (50 bar) with autoclaening filter |
| Lubricant throughout the spindle line |
| Coolant system for spindle line |
| Presetting |

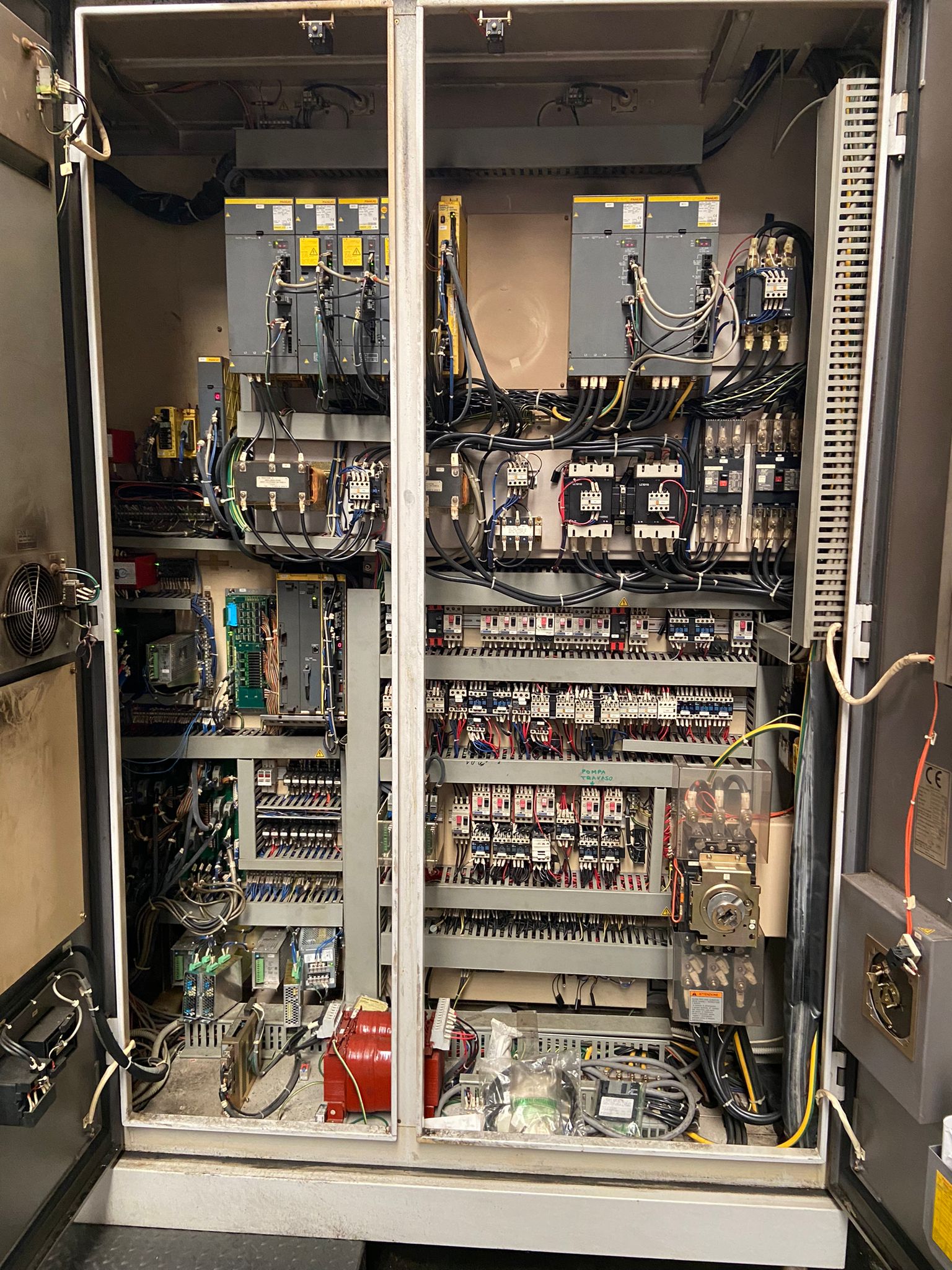

| Manuals, electric schematic |
